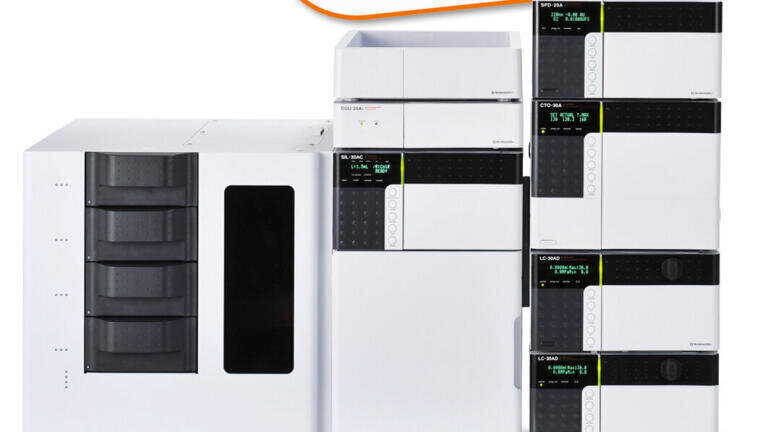

Nexera - the cleanest and fastest UHPLC ever to date

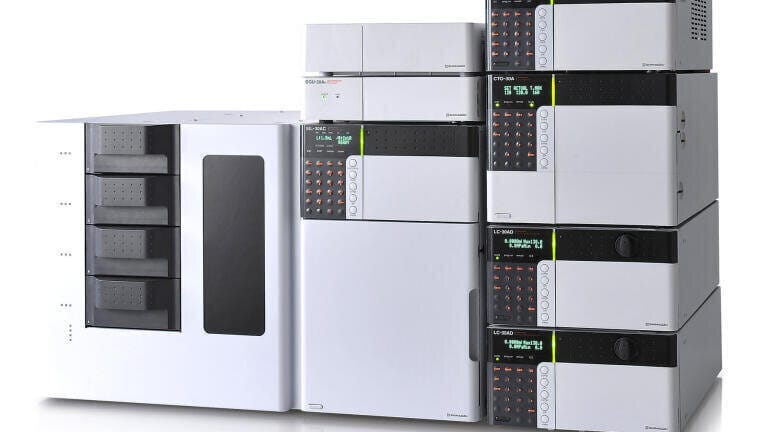

Shimadzu has introduced the Nexera ultra high-performance liquid chromatography (UHPLC) system. UHPLC systems represent the latest development in liquid chromatography instrumentation. Beside enhancements necessary to operate with sub 2 µm particle columns, they differ from each other through their versatility in handling various applications on the same instrument without any changes.

Shimadzu’s new LC-30A Nexera is unsurpassed in high-speed and high-resolution analysis and productivity. It meets the needs of the most demanding markets such as pharmaceutical and the food industry.

Nexera pumps offer a flow range from 0.0001 ml/min up to 3ml/min with 130 MPa pressure and from 3.0001 up to 5 ml/min with 80 MPa pressure. This allows the use of longer columns for covering fast LC with high flow rates and short columns as well as highest resolution using long columns.

The new developed micro-reactor based mixer supports a small system volume and very short gradient delays. The Nexera autosampler provides reduced carryover compared to the previous instruments by keeping the direct injection with isolated metering system principle using 3 rinse solvents, various rinsing modes and design changes at needle and needle seal. To increase the throughput overlapping pre-treatment can be used. The pre-treatment capabilities expand the application range of this instrument.

The control unit contains a modified software in order to control the new modules and functionalities, e.g. the autosampler.

In addition to UV and PDA detectors, the brand-new and worldwide most sensitive and fastest RF-20A/20AXS fluorescence detectors can be applied with Nexera.

LC-30A Nexera can be used for semi-micro, conventional and UHPLC methods without changes on the flowline. It fulfils the demands of an all-round LC system with high reliability and robustness.

For further details please visit www.shimadzu.eu/nexera
