Detectors

  • Biotech AB is proud to present the new innovative Runge Mikron Detectors

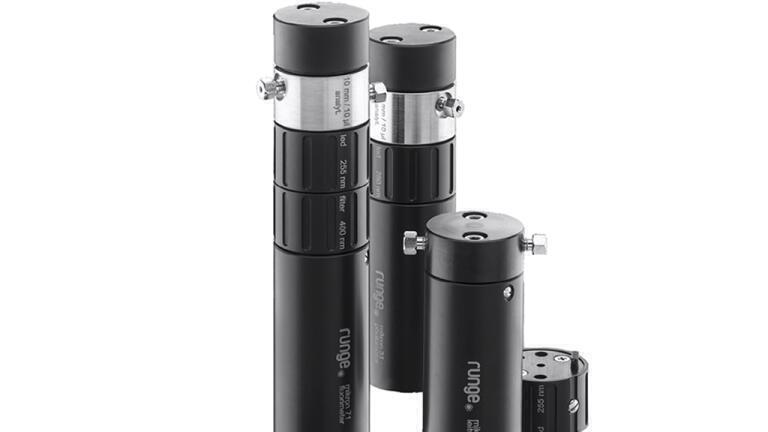

Biotech AB is proud to present the new innovative Runge Mikron Detectors

Feb 28 2018 Read 1165 Times

The new liquid chromatography detectors are sensationally small, flexible and future-proof.

The line consists of a:

  • Photometer: Absorption photometer with one or maximum two modular interchangeable LED light sources.
  • Fluorimeter: Fluorimeter with modular interchangeable LED light sources and emission filters.
  • and a conductivity meter: Conductivity meter for medium and high conductivity values.

Features

Small
The size is only 80-150 mm.

Flexible
Light sources, filter and measuring cell can be adapted to changing tasks. Ideal solution for changing routine tasks, yet more affordable and compacter than a fully variable detector.

Future-proof
Technical progress in LEDs is ongoing - with the Mikron you can be part of it, even after two or five years.

Upgradable
Your Mikron system grows in line with your requirements - or your financial possibilities. Start with one wavelength and then upgrade later.

Connective

  • USB-C connector for data and energy,
  • Drivers for Data Apex Clarity, SCPA ChromStar,
  • SCPA PrepCon, LabVIEW,
  • Open Runge protocol for customized implementation

small - LED technology is what makes Mikron possible
cool - functions at 4 °C (39 °F), no waste heat
durable - at least 5,000 operating hours
thrifty - under 2.5 W power consumption
non-toxic - no mercury vapor lamp

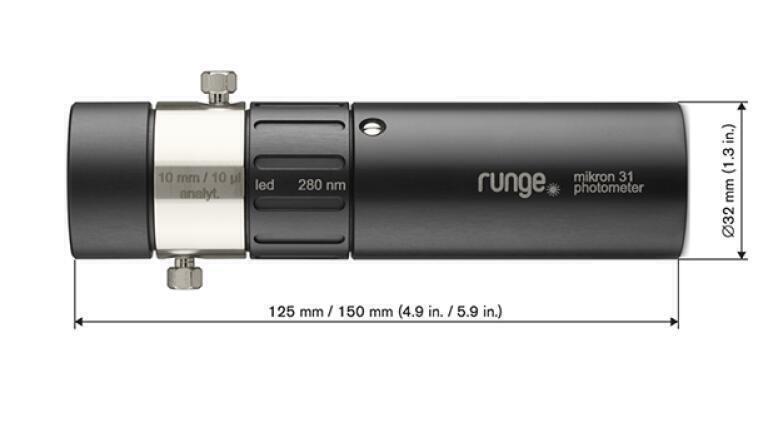

Runge Mikron 31 Photometer

“the photometer for changing routine tasks”

  • Two modular interchangeable LED light sources
  • Use it at the measurement site
  • Measures one or two wavelengths simultaneously
  • Select wave-lengths from 240 – 1050 mm
  • Easily change the LED cassettes
  • Use it in chilled environments e.g. 4°C (39°F) in bioanalysis
  • A reference channel guarantees a high degree of accuracy with no external calibration
  • Drivers for many reputed software packages are available

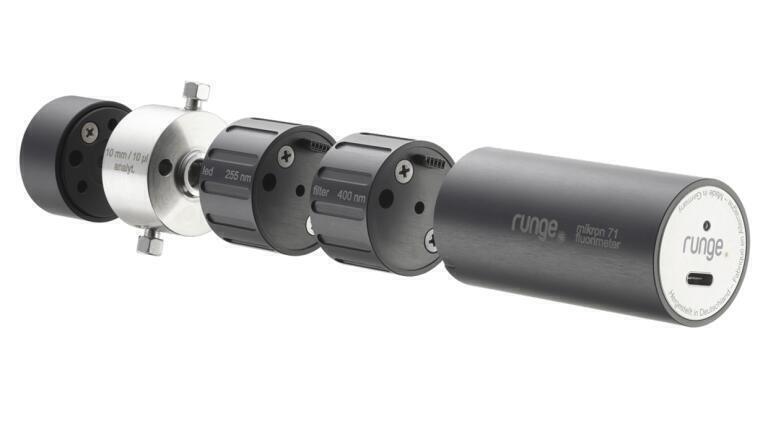

Runge Mikron 71 Fluorimeter

“the first pocket model fluorimeter in the world”

  • Modular interchangeable LED light sources and emission filters
  • Use it in the field, the laboratory or in a production plant.
  • Fixed but exchangeable wavelengths for stimulation and emission
  • It can be used directly in a chilled setting at 4°C (39°F) in bioanalysis
  • A wide range of wavelengths is available
  • A reference channel guarantees a high degree of accuracy with no external calibration
  • Drivers for many reputed software packages are available

Runge Mikron 81 Conductivity meter

“the ideal choice for applications in biology, pharmaceutics and the food industry”

  • For medium and high conductivity values
  • Can be used directly at the measurement site
  • It has a broad measurement range of five decades
  • Consistently precise and fast temperature compensation
  • A high degree of accuracy across the entire broad measurement range
  • Can be operated in chilled environments down to 4°C (39°F)
  • Calibrates itself every time it is switched on and when instructed
  • Automatically identifies the cell constant of the existing measuring cell
  • Drivers for many reputed software packages are available



For further information about Biotech AB please click here.
