PFAS Air Sampler

May 24 2022

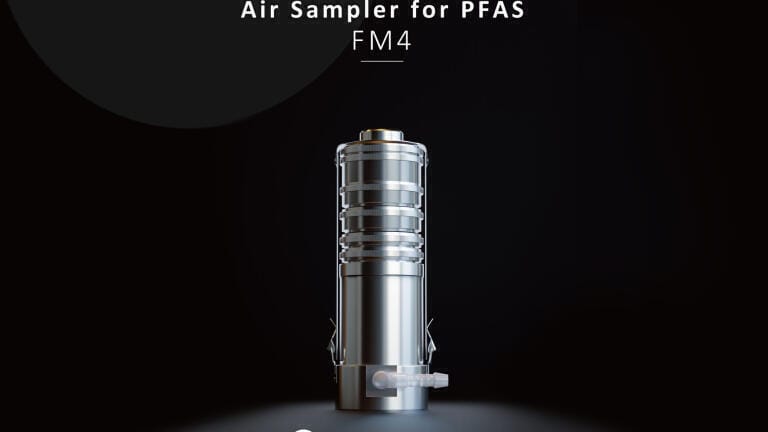

The FM4 is an air sampler developed for sampling per- and polyfluoroalkyl substances (PFAS) in air. The FM4 design is a groundbreaking approach, which enables the simultaneous collection of particulate and gaseous PFAS in air.
In conventional collection methods based on filtration, accurate measurement is often difficult. Gaseous PFAS may be adsorbed on particles collected on the filter surface. Additionally, a gaseous PFAS may change to its non-volatile form during sampling. To solve these limitations, the FM4 was designed in such way that it minimizes the contact between particles and gas and three types of adsorbents, which enable simultaneous collection of ionic and neutral/volatile PFAS.
The collected PFAS is eluted with organic solvents and quantified by gas chromatography-tandem mass spectrometry (GC-MS/MS) and liquid chromatography-tandem mass spectrometry (LC-MS/MS). Conventional activated carbons typically contain complicated pores. They have been used as adsorbents for PFAS. However, the complete elution of adsorbed PFAS is difficult to achieve. Therefore, we developed a new functional activated carbon adsorbent (GAIAC™), which was used as the gas-type adsorbent. GAIAC™ is an innovative sorbent that is composed of synthetic resin fiber with optimized pore and surface activity, which enable the collection and elution of PFAS.

- Comprehensive Sampling
The FM4 Air Sampler can simultaneously collect both particulate and gaseous substances. It allows the amount of each substance collected to be separately determined, making it possible to comprehensively evaluate the sampled air.

- Capable of Collecting Gaseous PFAS such as FTOHs
Up to now, it has been difficult to collect gaseous PFAS in the air. However, thanks to the FM4 Air Sampler’s newly developed activated-carbon desorption material, this is no longer a problem.

- Excellent Recovery Rate
The FM4 Air Sampler was tested with a wide range of PFAS and achieved excellent recovery rates.

- Portable and Easy to Deploy
Because the FM4 Air Sampler is lightweight and compact, it is easy to carry and, with its very small installation footprint, easy to deploy.

More information can be found on our dedicated FM4 website.
