MicroFlow LC: A Viable Solution for PFAS Analysis

Aug 18 2021

Author:

Karl Oetjen and Craig Butt



on behalf of SCIEX

Free to read

Articles are free to download. Unlock the article to be shown more content, graphs and images.

Abstract

Combining microflow chromatography with a triple quadrupole system provides extraordinary sensitivity for PFAS compounds in drinking water and soils. We describe the configuration and provide data on robustness and sensitivity. Sensitivity gains over high flow chromatography are demonstrated.



Introduction

Per- and polyfluorinated alkyl substances (PFAS) are a group of approximately 5,000 manmade chemicals that contain carbon-fluorine (C-F) monomers, most of which are highly stable and resistant to degradation [1,2]. These C-F bonds repel both oil and water in nature, making PFAS useful for many applications, including personal care products, food packaging, textiles, and fire-fighting foam. However, due to the abundance and strength of the C-F bonds, natural degradation of these compounds in the environment is extremely difficult, making them highly persistent [2,3]. The overwhelming presence of PFAS in drinking water systems and humans motivated the United States Environmental Protection Agency (U.S. EPA) to monitor 14 PFAS compounds, including perfluorooctanoic acid (PFOA) and perfluorooctanesulfonic acid (PFOS), in drinking water in Method 537 [4]. This method has been updated to EPA Method 537.1 and EPA Method 533.
The U.S. EPA advisory level of PFOA and PFOS combined is 70 ng/L in drinking water. However, some studies have suggested this level might be 100-fold too high [5]. This has influenced some states, like Vermont, to impose or offer lower acceptable limits. In 2016, Vermont adopted an advisory level of 20 ng/L for PFOA and PFOS combined, with other states like Minnesota, New Jersey, and Michigan following suit with their own levels.
As the suggested concentration limits continue to decrease and water system operators take appropriate steps to remove PFAS, more sensitive and robust analytical methods are needed. For routine environmental testing laboratories, preparing and analysing samples with a fast turnaround of results is crucial. The added demand pushes the need for new methods and technologies that will improve workflows; workflows need to include efficient and effective means to extract PFAS and remove matrix components during sample preparation and increase accuracy and precision. Challenges arise due to the compounds’ ubiquitous and persistent nature, which affects the ability to push instrument detection limits that are impeded by high background and baseline.

Microflow liquid chromatography
Modern analytical instruments continue to experience the demand for increased sensitivity while simultaneously consuming fewer resources (i.e. solvents) to maintain high efficiency and a competitive cost per analysis. Fortunately, access to techniques such as liquid chromatography coupled to tandem mass spectrometry (LC-MS/MS) has increased. LC offers ideal separation, identification, and detection in complex samples.
In recent years, innovation in microflow LC systems coupled with mass spectrometry (MS) has pushed this envelope further, enabling labs to do more: achieve higher sensitivity with an even lower limit of quantification (LOQ), achieve higher throughput and better robustness in their analyses, and, more importantly, do it in less time. In addition, microflow LC utilises significantly less solvent and less analytical sample without sacrificing any performance features. This study presents a microflow method for analysing the EPA Method 537 on the SCIEX Triple Quad 6500+ system coupled with an OptiFlow Turbo V ion source on an M5 MicroLC system.
Since EPA Method 537 requires samples to be prepared in a relatively high proportion of organic solvent (i.e., 96:4 methanol: water, vol/vol), breakthrough and poor peak shape of the early eluting, more polar PFAS compounds analytes are common. This is due to the fact the method uses reversed phase liquid chromatography, even at low injection volume. Therefore, this study utilised an online mixing strategy - the analytical conduit adapter (AnaCondA) - which effectively reduces the solvent strength at the front of the LC column.  The effect of using the AnaCondA is reduced peak shape distortion and peak splitting in microflow chromatography due to the lower flow rate and smaller column diameter. In addition, it allows for higher injection volumes, which ultimately lower detection limits.
The same approach is also applicable to EPA Method 537.1, since it requires the same sample solvent composition as Method 537. EPA Method 533 permits a ‘weaker’ sample solvent composition (i.e., 80:20 methanol: water, vol/vol), which may lessen the need for the AnaCondA, although this has not been thoroughly investigated.



Materials and methods

Sample preparation: Sample preparation and data processing were carried out according to EPA Method 537. An additional 1/10 dilution was then performed. A total of 20 samples were extracted out of a variety of matrices, including drinking water, groundwater, wastewater, and soil extracts. The internal standards (ISTD) used were 13C2-PFOA, 13C4-PFOS, and d3-N-methyl perfluorooctane sulfonamidoacetate (d3-NMeFOSAA). The surrogates used were 13C2-perfluorohexanoic acid (13C2-PFHxA), d5-N-ethyl perfluorooctane sulfonamidoacetate (d5-NEtFOSAA), and 13C2-perfluorodecanoic acid (13C2-PFDA). The complete sample set, including calibration and quality control samples, was run on 3 separate days.
Chromatography: The microflow analysis was performed using an M5 MicroLC system at a flowrate of 10 µL/min. A Gemini C18 3 µm, 100 x 0.3 mm column (Phenomenex) was used. This column uses the identical stationary phase, but smaller internal diameter as the high-flow method [5]. Mobile phases A and B were Milli-Q water with 10 mM ammonium acetate and J.T.Baker Ultra LC-MS grade methanol with 10 mM ammonium acetate, respectively (Table 1).

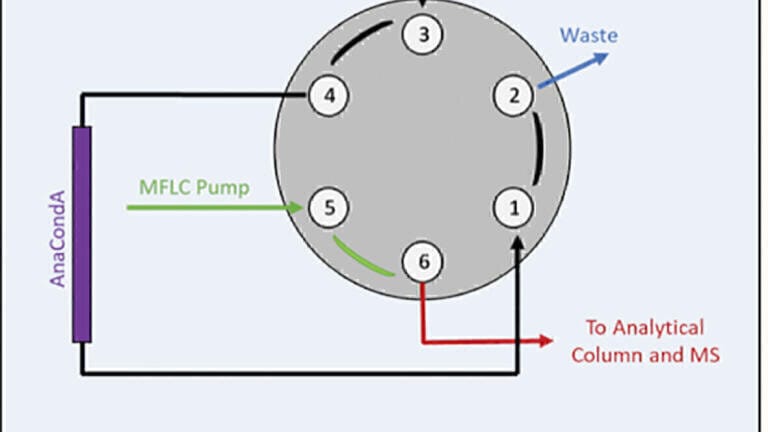

A novel online AnaCondA mixer was placed upstream of the analytical column (Figure 1). This approach works by increasing the Reynolds number (Equation 1) by increasing the diameter of tubing after the sample loop, thus promoting turbulence and creating more mixing. This works on the same principle as the Performance Optimizing Injection Sequence (POISe) approach outlined in Sanchez et al. 2012 but eliminates the need to make an additional injection of weak solvent [7]. In the AnaCondA approach, the weaker solvent (mobile phase A) is being mixed with the sample due to the trainstion from the low velcocity zone caused by the AnaCondA’s larger diameter to the high velocity zone caused by the small diameter of the microflow tubing.

Equation 1. Reynolds number equation
Typically, the high injection solvent strength required by EPA Method 537 causes excessive breakthrough and peak splitting, even with a 1 µL injection volume (Figure 2a). To prevent this from occurring, online mixing was promoted using an AnaCondA with a wide internal diameter (ID) of 0.5 mm and length of 5 cm after the sample loop (Figure 1). In addition to the AnaCondA, a faster sample injection speed was performed to increase the mixing turbulence. This allowed the injection volume to range between 1 and 10 µL without breakthrough or peak splitting (Figure 2b). The data shown in this application note were generated using a 4 µL injection volume to represent a traditionally monitored concentration range.
Mass spectrometry: The sample was injected into the SCIEX Triple Quad 6500+ system equipped with a OptiFlow Turbo V ion source that was designed specifically for lower flow rates. The optimised source conditions can be found in Table 2.
All analytes were monitored in multiple reaction monitoring (MRM) scan mode in negative polarity. The Scheduled MRM algorithm was used to monitor compounds during a 60 second expected retention time window to maximise dwell times and optimise the cycle time of the method.
Data processing: Results were processed in SCIEX OS software 1.7. Peak asymmetry and ion ratios were automatically calculated using custom columns. All calibration curves had a 1/x concentration weighting and were forced through the intercept as specified in EPA Method 537.



Discussion

Robustness and reproducibility: Microflow LC has been widely used in pharma and biopharma applications but has infrequently been used in environmental applications. To ensure ruggedness of both the method and analysis, calibration curves were generated and drinking water and soil samples were acquired in triplicate over 3 separate days. To evaluate whether suppression was occurring throughout the calibration curve process, the ISTD areas were plotted over the 3-day run for all calibration and quality control samples (Figure 3, top). The mean ISTD area was calculated and all collected data points fell within ±20%, suggesting no major suppression was occurring. The surrogate concentrations were also plotted over the 3-day run and were within the acceptable ±30% outlined in EPA Method 537 (Figure 3, bottom).
Sensitivity: The result indicates a significant gain in sensitivity (Figure 4). The 9 or 10-point calibration curve exhibited good accuracy within ±30% of the expected values for all points, accuracy within ±50% for the lowest calibrator, and R2 coefficients of >0.990 (Table 4). The lower limit of quantification (LLOQ) varied between 1 and 5 parts per trillion (ppt) in vial, equating to 0.04 and 0.2 ppt in the sample before extraction (Table 3; Figure 5). If further sensitivity was needed, a larger injection volume (up to 2.5x larger) could be performed.
The sensitivity between the presented microflow LC method and traditional flow method [5] using a 4 µL injection was compared. This comparison was made by dividing the signal to noise (S/N) for the compound using the microflow LC method by the S/N of the compound using the traditional flow method. This ratio was measured at the lowest point of the calibration curve in the traditional flow data, given that the microflow LLOQ was significantly lower. When comparing sensitivity gains from the current microflow method to traditional flow, all PFAS compounds showed improved sensitivity from the smaller flow rates. The exact change in peak signal intensity varied across the panel largely due to individual analyte properties (data not shown). However, the sensitivity gains ranged from 2.2 for PFOS to 24.2 for PFTeDA.



Conclusions

A sensitive and robust method was developed for microflow analysis of the analytes in EPA Method 537. The assay showed reproducibility of internal standards, surrogates, and calculated concentrations of unknown environmental samples over multiple days. The increase in sensitivity in this study enabled LLOQs of 1-5 ppt for EPA Method 537 with a 4 µL injection volume. A larger injection volume, enabled by the AnaCondA mixing approach, would allow for even lower LLOQs, if necessary. This method has been updated to support EPA Method 537.1 and EPA Method 533.


References

1.    Environmental Protection Agency. (2020, October 14). National Priorities: PER- AND POLYFLUOROALKYL SUBSTANCES. EPA. https://www.epa.gov/research-grants/national-priorities-and-polyfluoroalkyl-substances
2.    Richardson, S. D.; Ternes, T. A. (2018)  Water Analysis: Emerging Contaminants and Current Issues. Anal. Chem.  90 (1), 398–428.
3.    Field, J. A.; Higgins, C.; Deeb, R.; Conder, J. FAQs Regarding PFASs Associated with AFFF Use at U . S . Military Sites FAQs Regarding PFASs Associated with AFFF. August 2017, 1–32.
4.    PFAS Analytical Methods Development and Sampling Research. https://www.epa.gov/water-research/pfas-analytical-methods-development-and-sampling-research
5.    Quantitation of PFASs in Water Samples Using LC-MS/MS Large-Volume Direct Injection and Solid Phase Extraction; 2017. SCIEX technical note RUO-MKT-02-4707-A
6.    Analysis of EPA Method 537 per- and polyfluoroalkyl substances (PFASs) using microflow liquid chromatography; 2020. SCIEX technical note RUO-MKT-02-11534-A
7.    Sanchez, A. C., Anspach, J. A., & Farkas, T. (2012). Performance optimising injection sequence for minimising injection band broadening contributions in high efficiency liquid chromatographic separations. Journal of Chromatography A, 1228, 338-348.



Author information

Karl Oetjen, Ph.D., Senior Application Scientist and Craig Butt, Ph.D. Staff Application Scientist, are part of the North America regional team for Cannabis, Environmental, Food and Beverage Testing at SCIEX, a Danaher operating company and a global leader in the precise quantification of molecules.
The SCIEX clinical diagnostic portfolio is For In Vitro Diagnostic Use. Rx Only. Product(s) not available in all countries. For information on availability, please contact your local sales representative or refer to www.sciex.com/diagnostics. All other products are For Research Use Only. Not for use in Diagnostic Procedures.

Trademarks and/or registered trademarks mentioned herein, including associated logos, are the property of AB Sciex Pte. Ltd. or their respective owners in the United States and/or certain other countries (see www.sciex.com/trademarks).

© 2021 DH Tech. Dev. Pte. Ltd. RUO-MKT-19-13527-A
